NEOVOLT 10kw+14.4kwh three-phase photovoltaic solar system

NEOVOLT 10kw+14.4kwh three-phase photovoltaic solar system

Description
customer reviews
Shipping & Returns

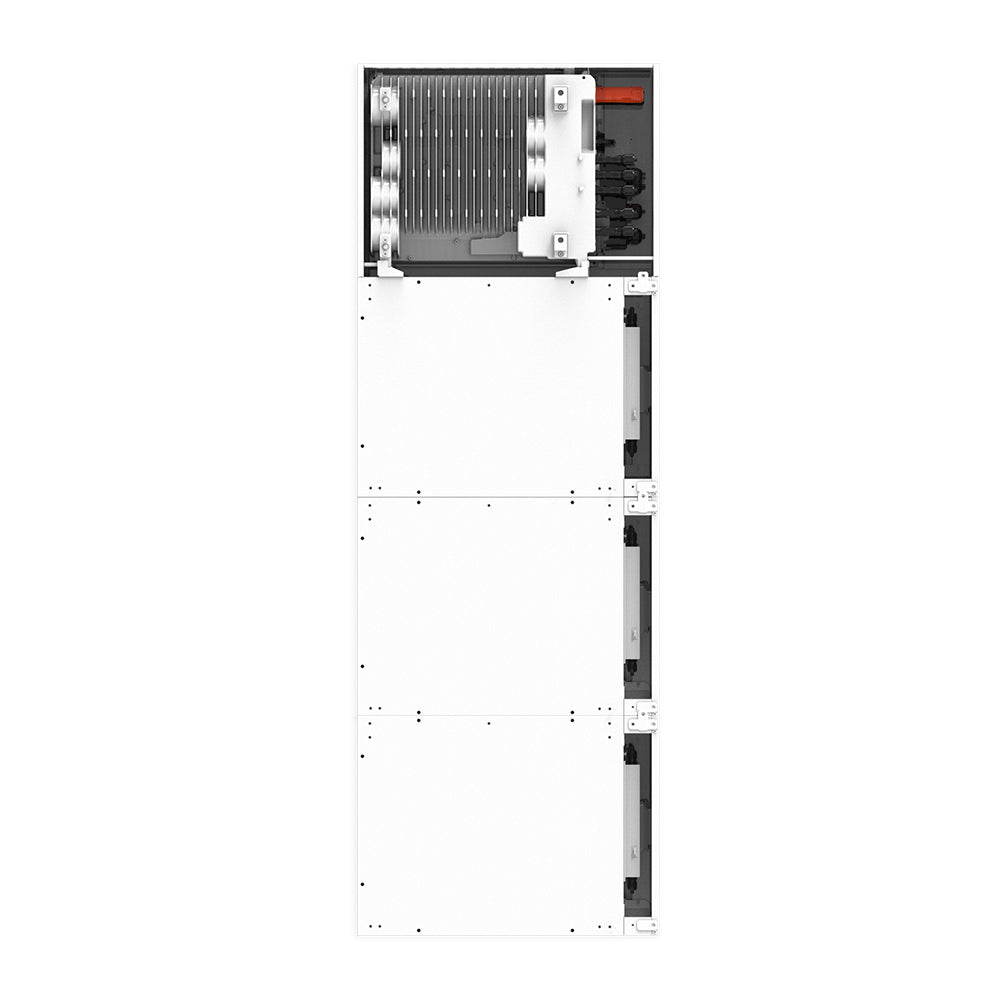

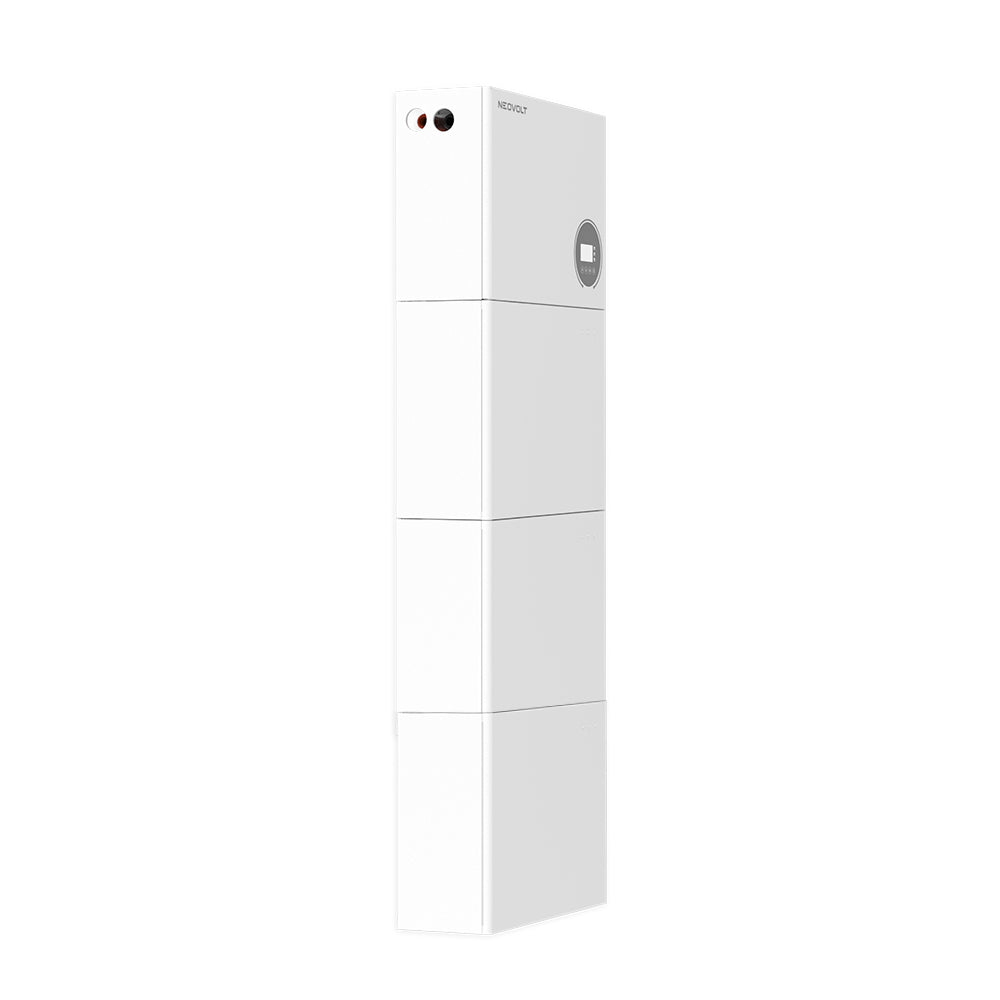

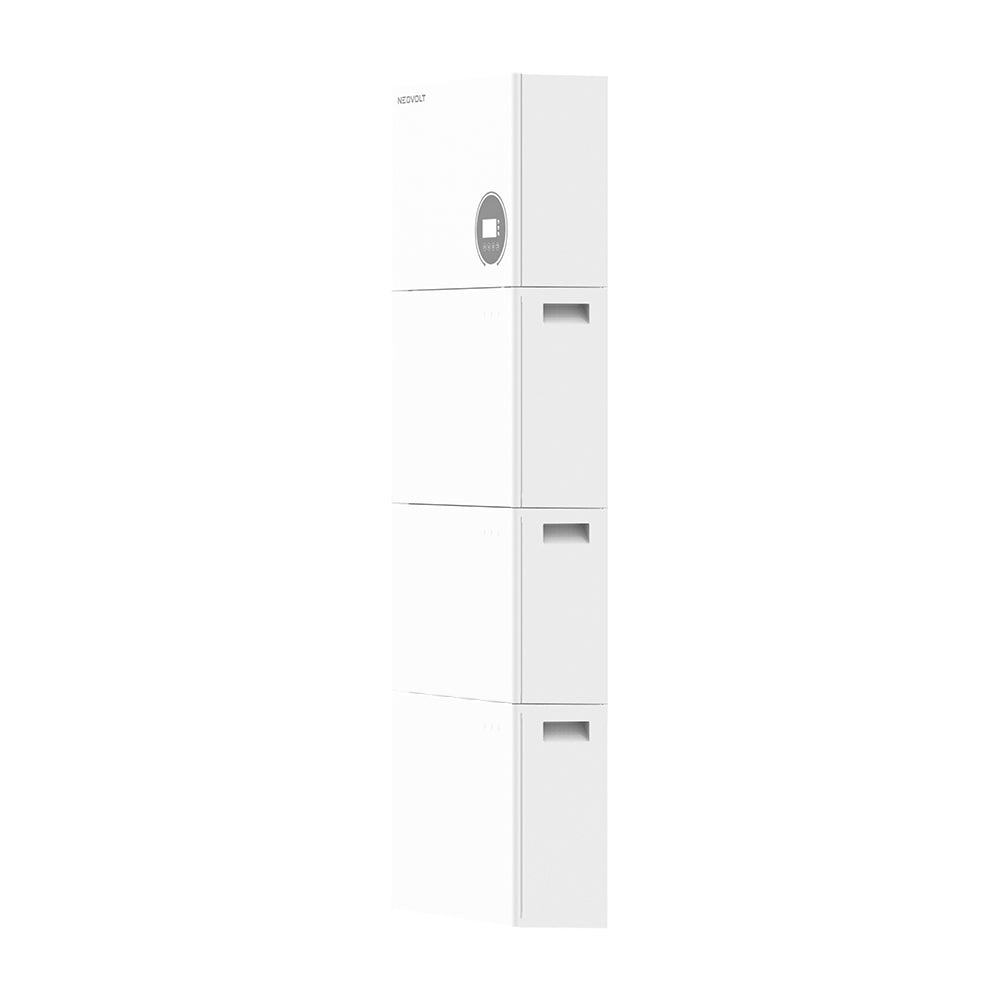

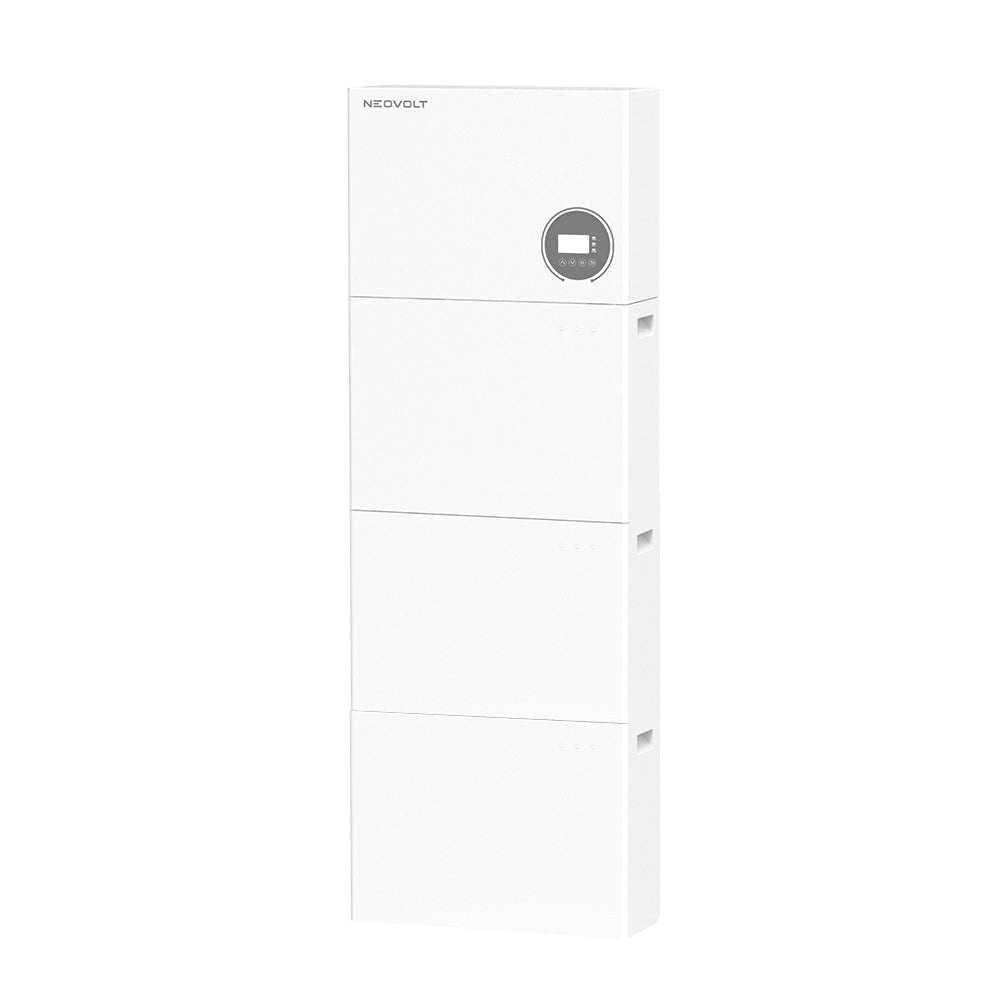

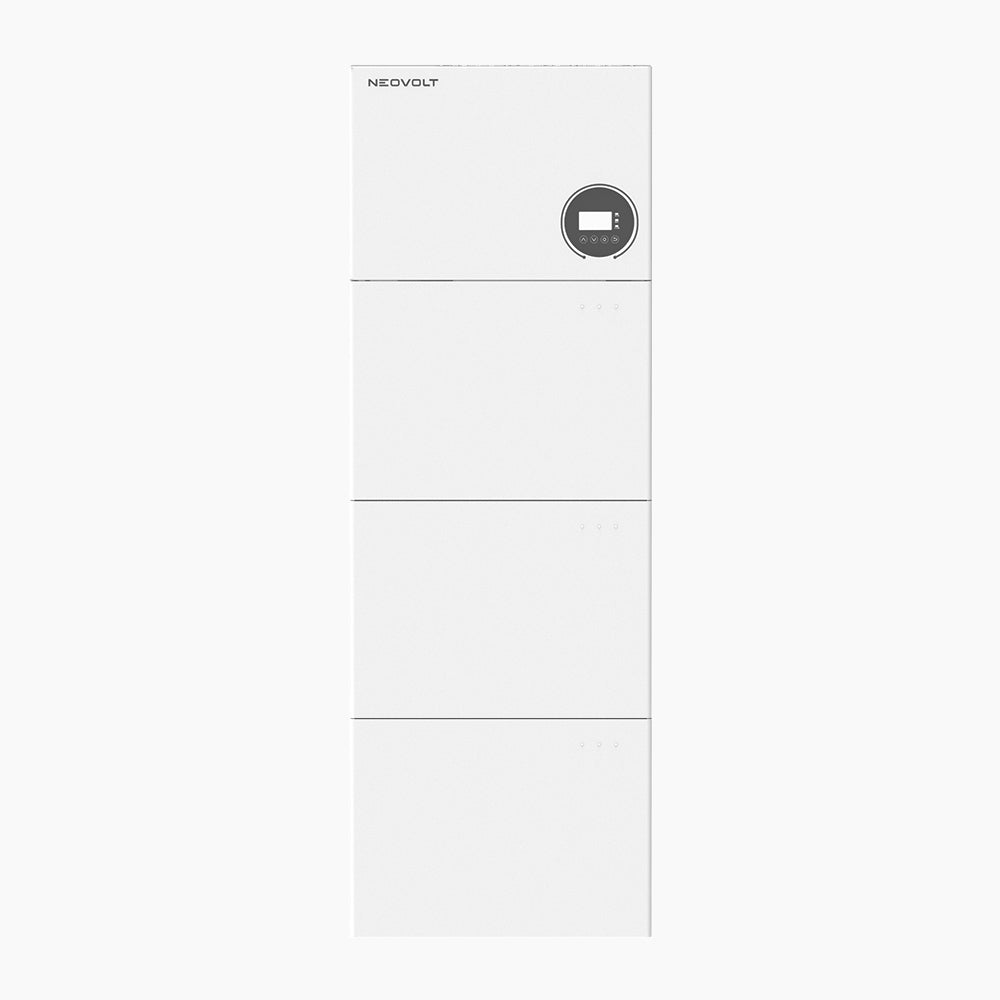

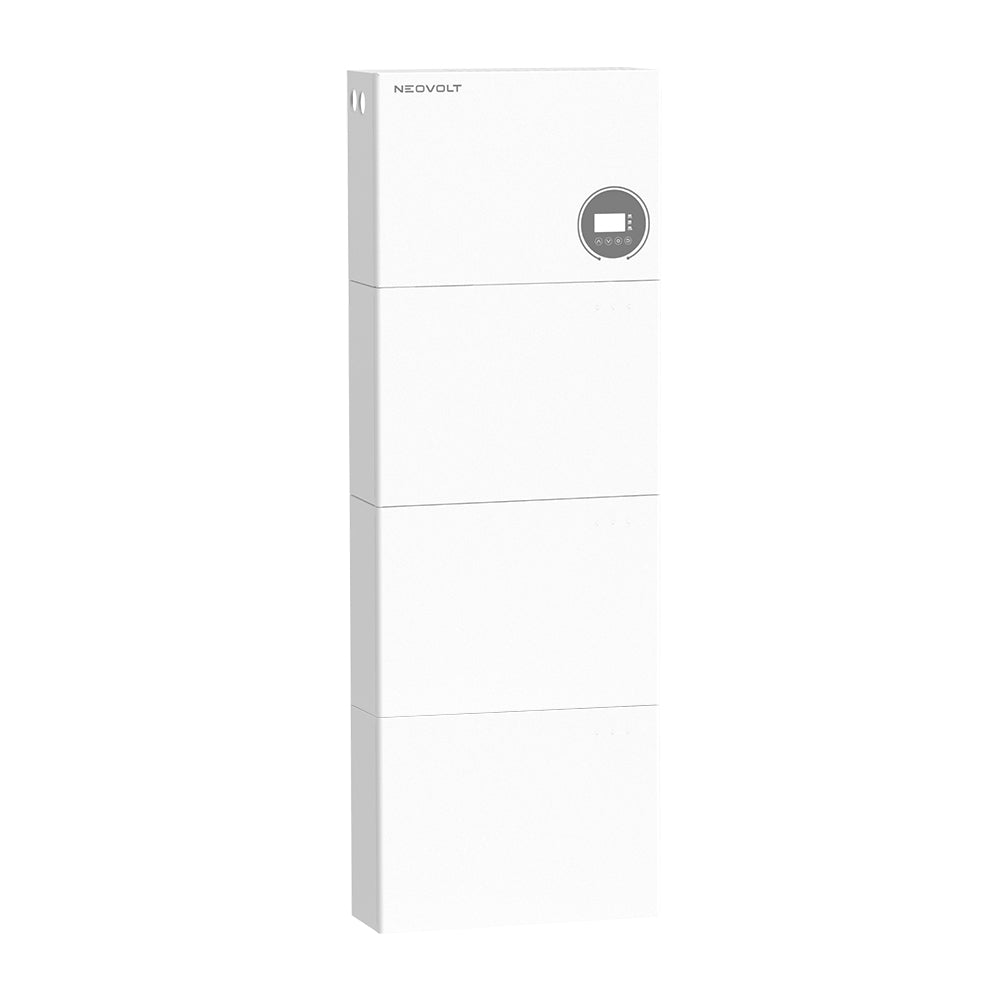

  • This photovoltaic system consists of a 10 kW three-phase inverter and 3* 4.8 kWh storage units
  • Maximum efficiency 98%, battery efficiency 96%
  • Easy installation: Plug-and-play installation with built-in fuse protection
  • IP65 Durable and corrosion-resistant, with maximum flexibility and suitable for outdoor installation.
  • Online maintenance: Remote maintenance of the system is possible via smartphone or web portal
  • Expandable batteries Additional batteries can be easily added
  • Natural Cooling Equipped with natural cooling technology, with large temperature tolerance and no internal fans, making the system work silently
  • Safety With EVE Tier 1 prismatic cells, similar to those used in vehicles, and with multiple hardware and firmware protection mechanisms. Redundant protection at UPS level against backup load failure
  • 10-year warranty for inverters and storage
  • This product will be delivered by truck, please keep your phone free and have someone at home sign for the package to avoid the package being returned because no one signs for the package when it is delivered
PV INPUT inverter
Max. PV input power 20kw
Max. PV input voltage 1100V
MPPT range 140-950V
Max. input current 16A/16A/16A
Max. short-circuit current 24A/24A/24A
MPPT tracker 3
strings per MPPT tracker 1/1/1
Max Efficiency 98%
Max. Storage Efficiency 96%
Size 25kg
Weight 25kg


battery capacity 4.8kwh
Usable capacity 4.6kwh
Nominal battery voltage 96V
operating voltage range 90-108V
Max. charging current 50A
Max. discharge current 50A
Size 590x430x205 mm
Weight 39.2kg
