Growatt micro inverter 800W without power line
Growatt micro inverter 800W without power line

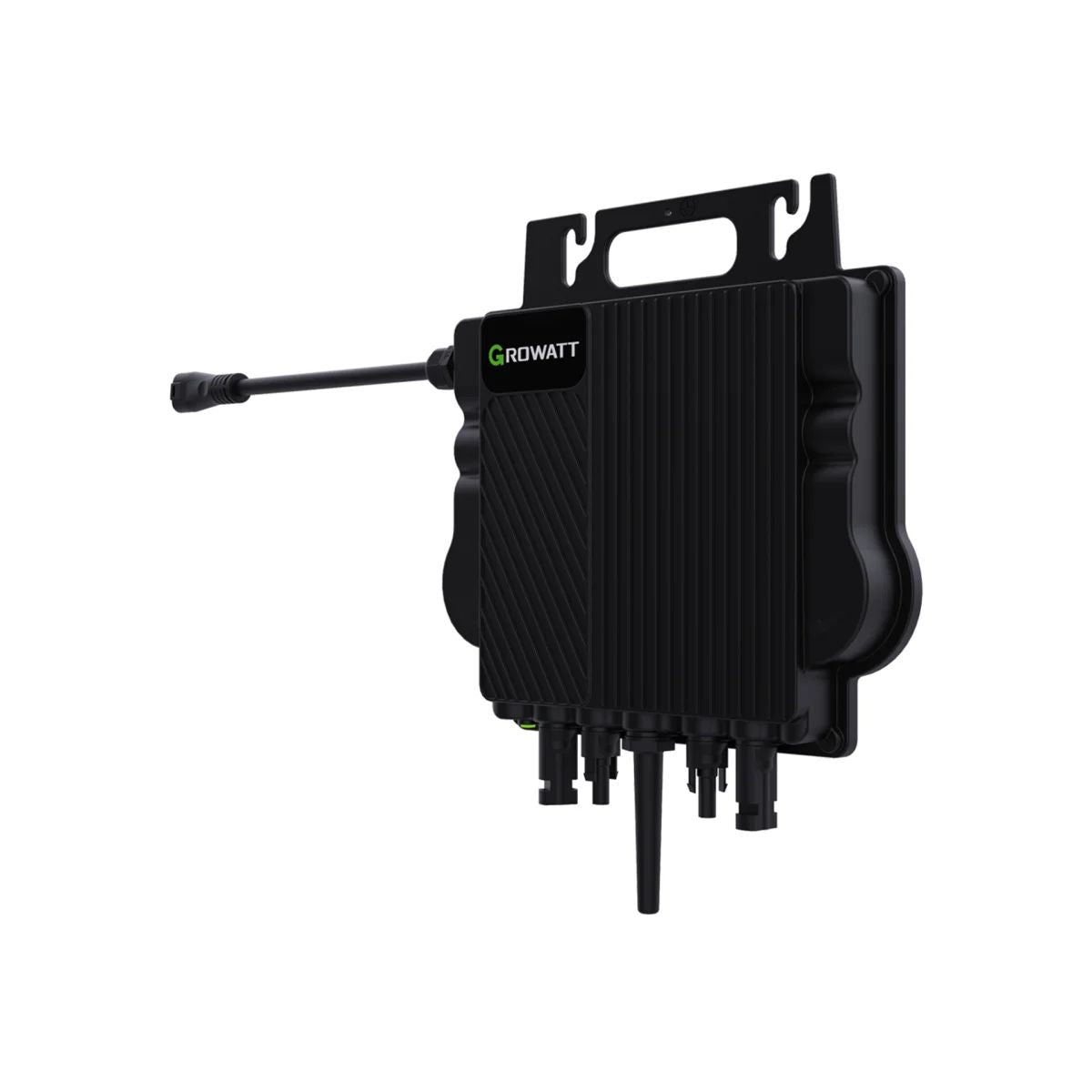

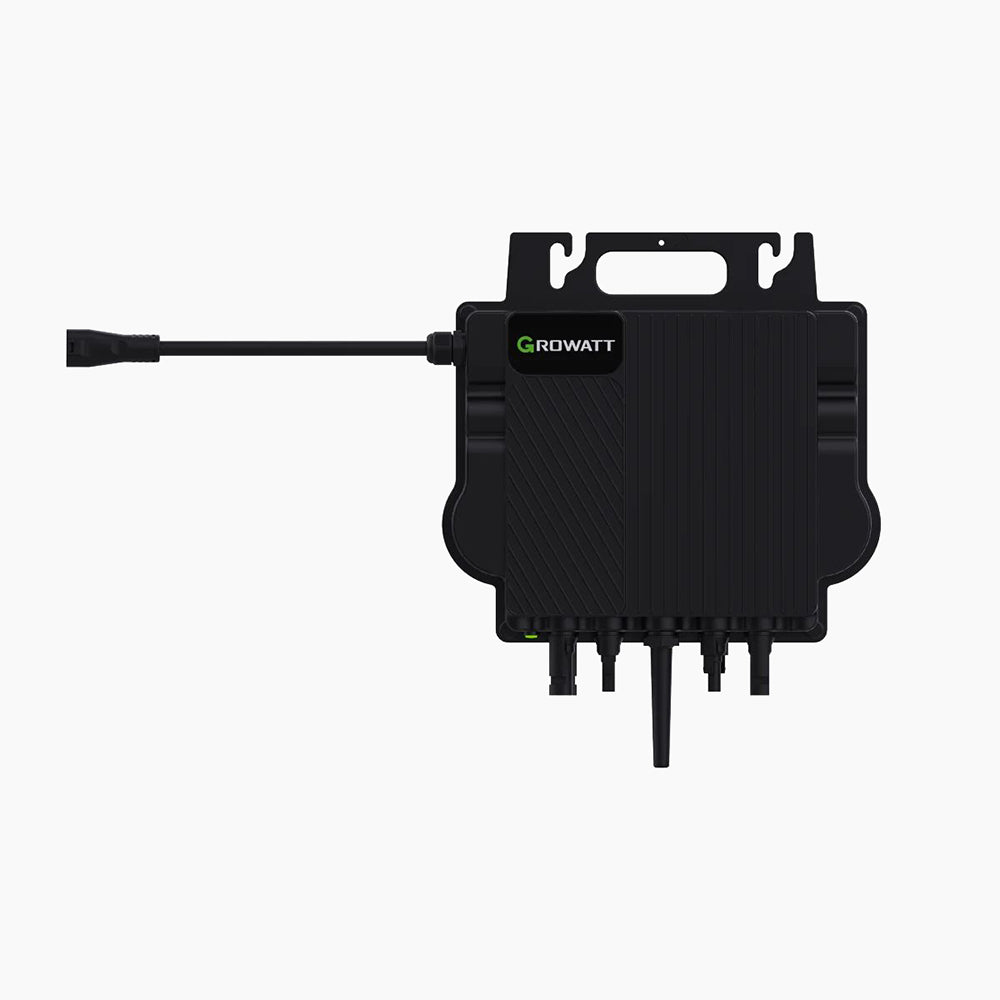

Growatt NEO 800W Micro Inverter
The Growatt NEO 800M-X is a 1-phase micro inverter that was specially developed for the trouble-free use of balcony power plants or mini solar systems. The inverter is characterized by its impressive efficiency of up to 96.5%.
With 2 independent MPPT inputs and an impressive maximum PV output of 320W up to 540W, this inverter is ideal for smaller systems. The inverter also offers a WiFi function that allows effortless system monitoring. This makes it an optimal choice for setting up and managing balcony power plants, where ease of use and high efficiency are of great importance.
The NEO 800M-X inverter:
2 independent MPPTs
Integrated WiFi communication
Type III SPD on AC side
Fast shutdown
Monitoring at module level
Online smart service and maintenance
LED display
Two MPP trackers for optimal solar yields
The Maximum Power Point Tracker (MPPT) technology enables the yield of a solar system to be maximized by determining the ideal relationship between solar radiation, module temperature and the properties of the solar cells over the course of the day. The NEO inverter with two MPP trackers can optimize the optimal operating point for two separate photovoltaic strings independently of each other. These two trackers work independently, meaning that shading in one string, for example, has no effect on the other.
AC Type III SPD
A Type III SPD on the AC side of the inverter is a protective device that protects the inverter and connected components in solar systems from overvoltages. It detects and safely discharges overvoltages caused by external influences such as lightning strikes to prevent damage to the equipment and ensure system reliability.
Integrated protection functions
DC reverse polarity protection
AC surge protection
AC short circuit protection
Earth fault monitoring
Network monitoring
Island formation protection
Technical data
Max. recommended PV power: 320W up to 540W+
Max. input voltage: 60 V
Starting voltage: 16 V
Nominal DC voltage: 16-60 V
MPPT voltage range: 28V-60V
Max. input current per MPPT: 16A
Max. short circuit current per MPPT: 20 A
AC rated power: 800 W
AC nominal voltage range: 230V (180-253V)
Frequency range: 50/60 Hz (45-55Hz/55-65Hz)
Nominal output current: 3.48 A
Dimensions: 260 x 220 x 43mm
Weight: 3.1 kg
Operating temperature range: -40°C - +65°C
Protection class: IP67
| Power in W: | 800W |
| Shipping weight: | 3.10kg |
| Item weight: | 3.10 kg |
| Dimensions (length × width × height): | 26.00 × 22.00 × 4.30cm |
| Output (AC) | |
| AC rated power | 800W |
| Max. AC apparent power | 800VA |
| AC nominal voltage (range) | 230V (180-253V) |
| Adjustable voltage range | 170V – 278V |
| Nominal output current | 3.48A |
| Input (DC) | |
| Max. recommended PV module power (per STC module) | 320W up to 540W+ |
| Max. input voltage | 60V |
| Starting voltage | 16V |
| Nominal DC voltage | 16-60V |
| MPPT voltage range | 28V – 60V |
| Max. input current per MPP tracker | 18 A |
| Max. short circuit current per MPP tracker | 20A |
| Operating temperature range | -40°C – +65°C |
| Dimensions (W / H / D) | 260/220/43mm |
| Weight | 3.1kg |
