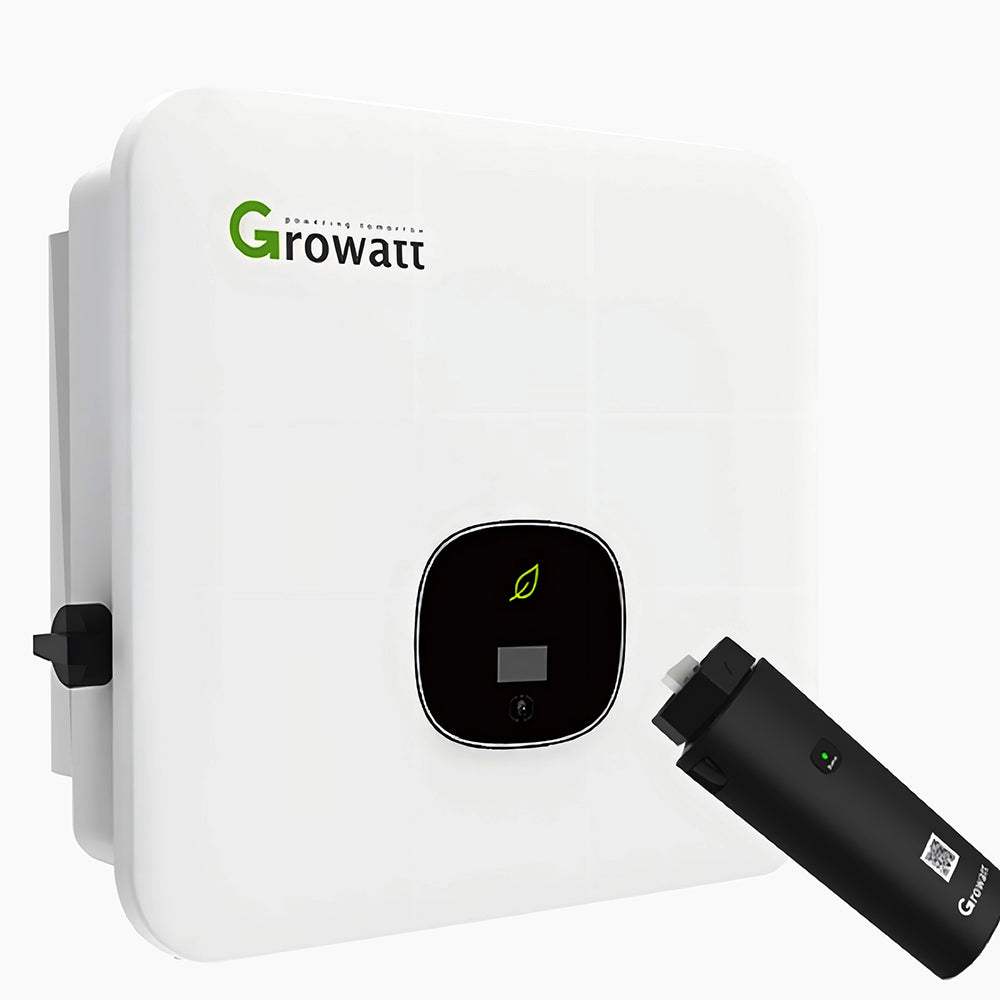

Growatt MIN 3600TL-XH 3.6kW Hybrid Inverter with WIFI(Click here to view manual)

The MIN 3600-XH from Growatt is a hybrid inverter that is used to temporarily store the electricity produced in the solar system. This helps to increase your own consumption of solar power. Growatt is a renowned market leader in the field of intelligent energy solutions and stands for high quality and reliability.

Compatibility : ARK XH(BMS: BDC 95045-A1, Battery: ARK -2.5H-A1, Cable: ARK XH battery cable )

These features characterize the MIN 3600TL-XH hybrid inverter

The maximum output power of the inverter is 3600W, and the product is compatible with systems of up to 7200W. The maximum efficiency of the inverter is 98.2%, this value represents the maximum efficiency of the device. The European efficiency of the MIN 3600-XH, which takes into account the typical weather conditions in Europe, is 97.2%.

Modern device with 2 MPP trackers

Growatt's hybrid inverter is transformerless, which increases its efficiency. It has 2 MPP trackers that support maximum power and allow two independent strings to be connected. This is particularly important if your PV system consists of areas of different thicknesses. The MIN 3600-XH comes without a smart meter, so you don't need any additional components.

Smart interfaces for high compatibility

The Growatt MIN 3600-XH inverter has these interfaces:


  • RS485

  • USB

  • Wi-Fi (optional)

  • GPRS (optional)

  • RF (optional)

  • LAN (optional)

Characteristics

Protection class:

IP65

Color:

white

PDF product data sheets are available for download.
Phases: 1
Number of MPPT: 2
Expandable: No
Interfaces: RS485
Efficiency in percent: 97.2%
Max system size kWp: 7.2 kWp
Power in W: 3600W
Shipping weight: 13.70kg
Item weight: 12.30 kg
Dimensions (length × width × height): 37.50 × 35.00 × 16.00 cm
