NEP BDH 800W micro inverter 5m power cable VDE + 2.76KWH NEP solar power storage VDE
- Including transport costs
- DE Tax rate: 0% according to Section 12 para. 3 UStG
- DE Immediately available
- Pre-sale: Shipping on 6.20
PV-Eingang | PV | |

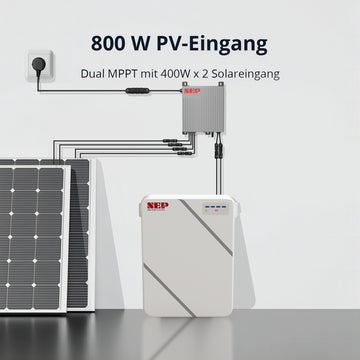

Empfohlen. PV-Modul /W | 600 x 2 |
MPPT Spannungsbereich /V | 22-55 |
Einschaltspannung /V | 24 |
Max. Eingangsspannung /V | 60 |
Max. DC-Kurzschlussstrom /A | 20 x 2 |
PV-Überspannungsschutz Kategorie | II |
AC-Ausgang (am Gürtel) | |
Max. Kontinuierliche Ausgangsleistung /VA | 800* |
AC-Nennausgangsspannung /V | 230 |
Max. AC-Dauerausgangsstrom /A | 3.48 |
Nennfrequenz /Hz | 50 / 60 |
Leistungsfaktor bei Volllast | >0.99 (bei Volllast) |
THDi@Rated Power | <3% (bei Nennleistung) |
AC-Überspannungsschutz Kategorie | III |
Max. Wirkungsgrad | 97.30% |
Abmessungen (W x H x D) /mm | 315*244*39 |
Gewicht (ohne Batterie) /kg | 4.5 |
PV-Eingang | PV | |
Empfohlen. PV-Modul /W | 600 x 2 |
MPPT Spannungsbereich /V | 22-55 |
Einschaltspannung /V | 24 |
Max. Eingangsspannung /V | 60 |
Max. DC-Kurzschlussstrom /A | 17 x 2 |
PV-Überspannungsschutz Kategorie | II |
AC-Ausgang (am Gürtel) | |
Max. Kontinuierliche Ausgangsleistung /VA | 800* |
AC-Nennausgangsspannung /V | 230 |
Max. AC-Dauerausgangsstrom /A | 3.48 |
Nennfrequenz /Hz | 50 / Configurable |
Leistungsfaktor bei Volllast | >0.99 (bei Volllast) |
THDi@Rated Power | <3% (bei Nennleistung) |
AC-Überspannungsschutz Kategorie | III |
Max. Wirkungsgrad | 97.30% |
Abmessungen (W x H x D) /mm | 315*244*39 |
Gewicht (ohne Batterie) /kg | 4.5 |
Ausgang zum Mikro-Wechselrichter | DC | |
Empfohlener Mikro-Wechselrichter Leistung /W | ≤1000W |
Max. Ausgangsleistung /W | 1000W |
Max. Ausgangsstrom /A | 20 |
Nennspannungsbereich /V | 22-60 |
Effizienz | |
Spitzenwert Effizienz /% | 97.30 |
MPPT Effizienz /% | >99.5 |
BDS Ladung zur Batterie | DC | |
Max. Ausgangsleistung /W | 1000 |
Max. Ausgangsstrom /A | 20 |
Rated Voltage /V | 51.2 |
Allgemeine Daten | |
Abmessungen (B x H x T) /mm | 180 x 244 x 31 |
Gewicht (ohne Batterie) | 2.2 |
Kommunikationsmethode | WiFi |
Betrieblicher Umgebungstemperaturbereich/℃ | -40~65 |
Nennspannung | 51.2V |
Nennkapazität | 54AH |
Spannungsbereich | 40-58.4V |
Maximaler Ladestrom | 30A |
Maximaler Entladestrom | 20A |
Maximaler Entladestrom Ladestrom | 0~55°C |
Maximaler Entladestrom Entladung | -20 ~ 60 °C |
Lagertemperatur | ﹣10~35℃ |

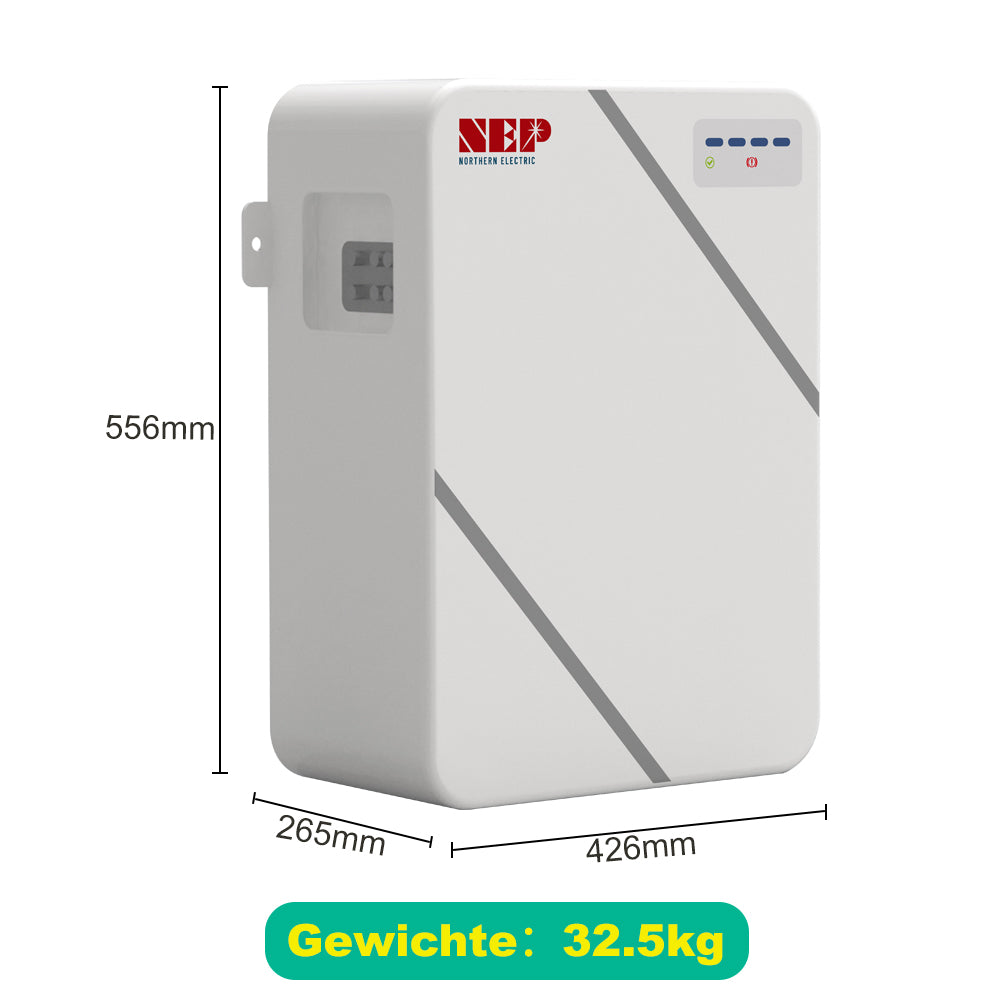

Größe (L B H) | 556*426*265mm |
Gewicht | 32.5kg |
IP-Schutzart | IP65 |
![NEP BDH 800W micro inverter 5m power cable VDE + 2.76KWH NEP solar power storage VDE](http://songsolar.com/cdn/shop/files/image-314b443d-5283-43b4-aa9b-544c608b8238_e8c2732e-03e5-4f67-8ee7-422b8bfa9167.png?v=1716278419&width=360)

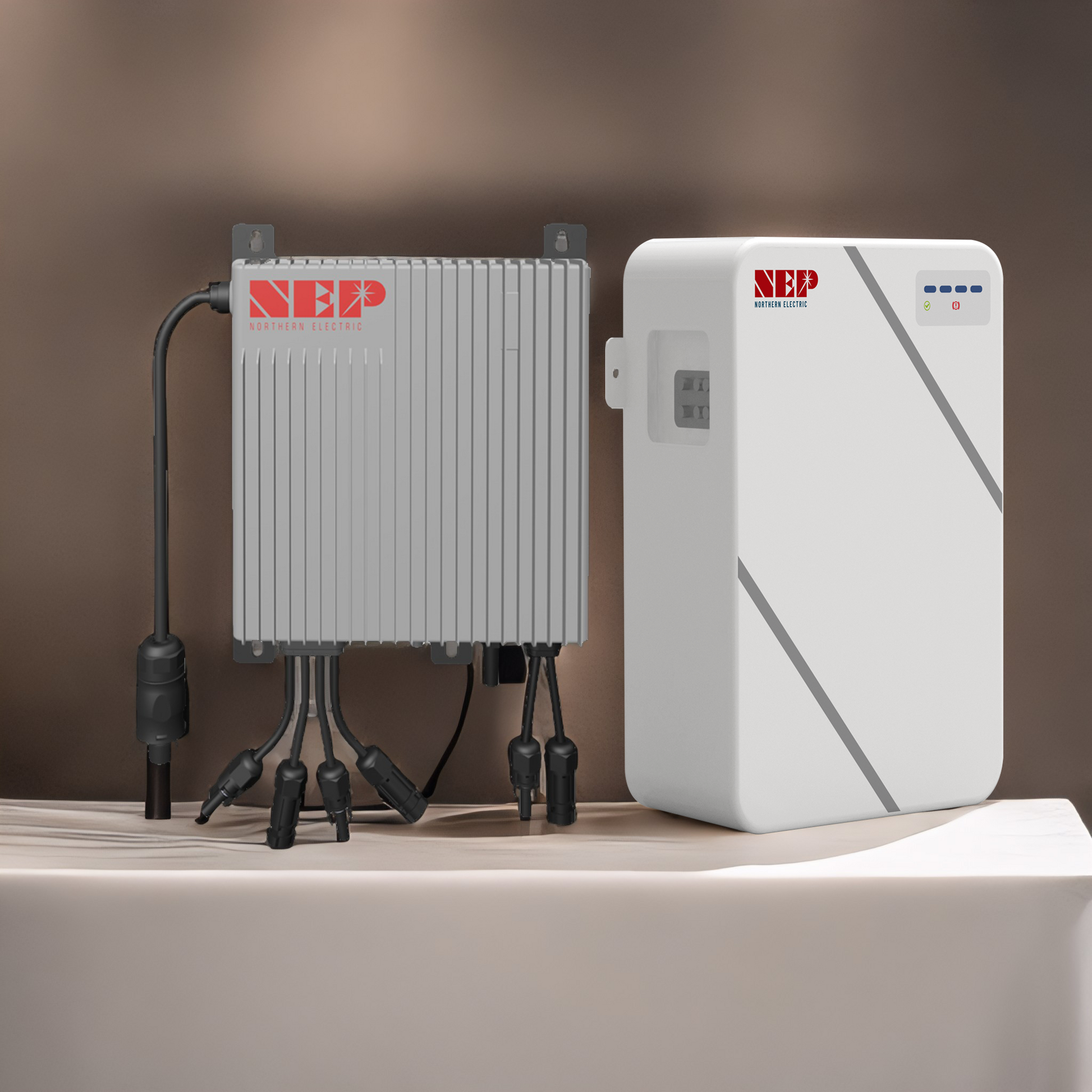

NEP BDH 800W micro inverter 5m power cable VDE + 2.76KWH NEP solar power storage VDE
Micro inverter product advantage:
- IP66&67, super protection class

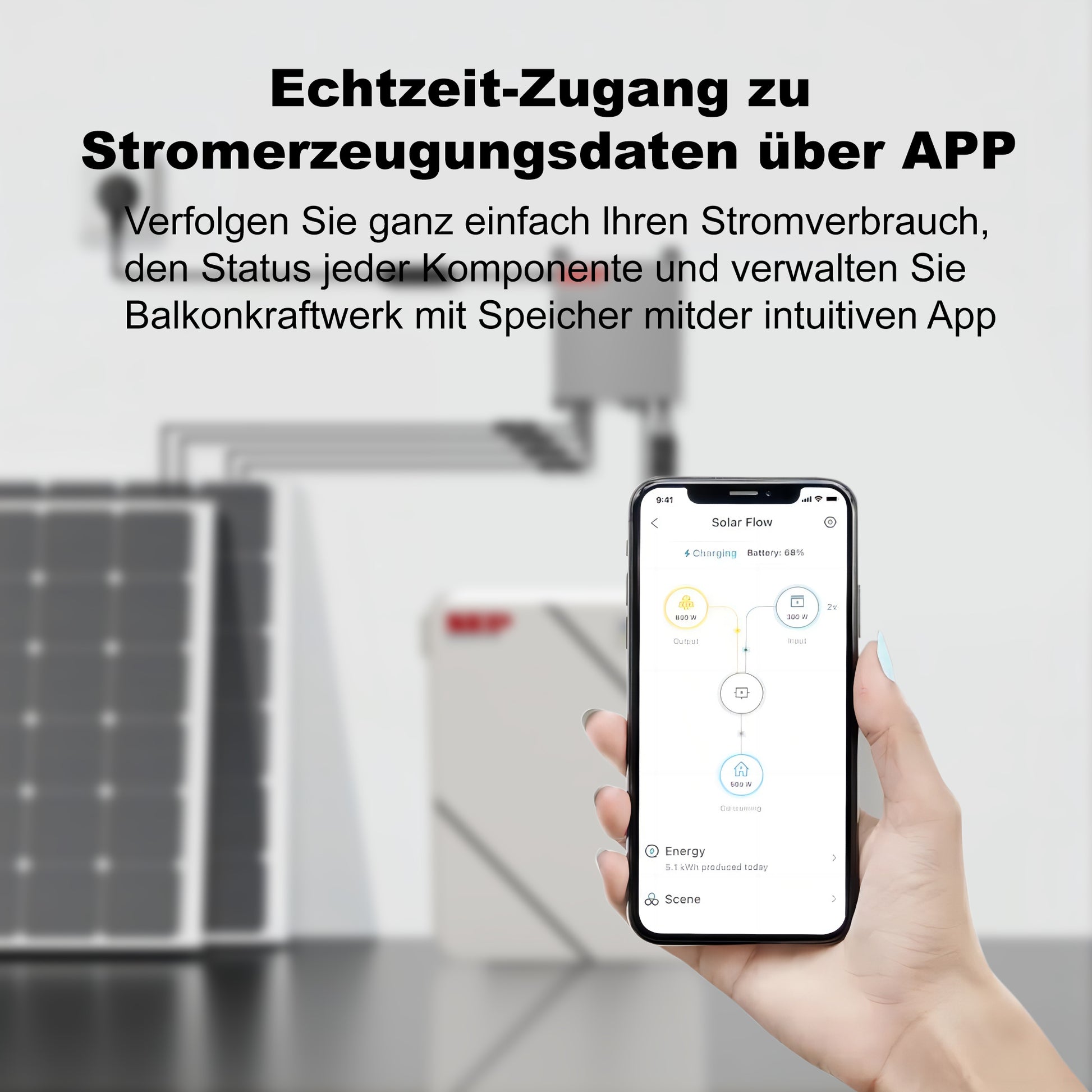

- Wifi connection, easy to use
- Plug and play, user-friendly and self-installable
- Intelligent energy planning, perfect control
- Natural heat dissipation, no fan noise
- 10 year quality guarantee
2.76KWH NEP solar storage product advantage:
- SAVE UP TO 4605€ ON ELECTRICITY COSTS
- IP-65 10 year warranty
- In combination with the BDS1000 converter, the battery can be used with hoymiles and Growatt inverters.
- DIY INSTALLATION IN 5 MINUTES: Set up, connect, done.
No more wasting energy! - Lithium iron phosphate battery with high safety performance
- The device has a perfect protection function
- This product is a 51.2V DC battery system used in the field of home energy storage, working with inverters and other devices to form a complete system to meet the family's daily power needs.
- High-precision voltage and current sensing and SOC estimation
![]() |
![]() |
![]() |
![]() |
Included in the package:
- BDH 800W Micro Inverter *1
- 2.76KWH NEP solar storage
- 5m power cable*1
Warranty
2 year warranty inverters & controllers, 5 year warranty batteries, 15 year warranty solar panels.
