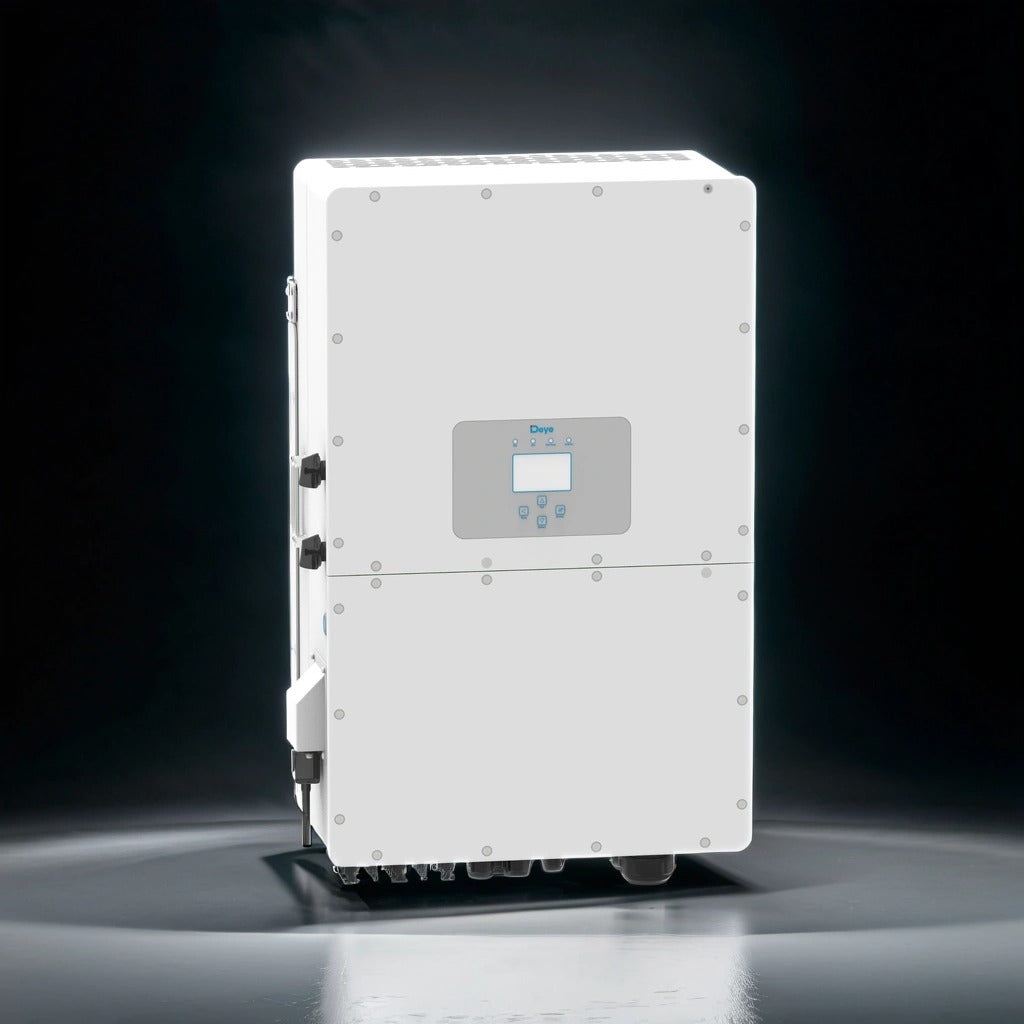

30KW DEYE Three Phase Hybrid Inverter IP65
30KW DEYE Three Phase Hybrid Inverter IP65
Product features:
- 🌞【Three-phase hybrid inverter】30KW 600V solar inverter with integrated MPPT 100A charge controller. Combines all the functions of an inverter, a solar and a battery charger in one device. Max. 10 units in parallel (grid-tied/off-grid mode). Supports parallel connection of multiple batteries. 100% unbalanced output, each phase
- 🌞【Solar charging mode】Thanks to MPPT Max. charge/discharge current of 100A. MPPT increases the efficiency of the solar panel system by continuously monitoring and adjusting the operating voltage of the solar panel to achieve the maximum available power. The result is higher output power, better battery performance and better overall system efficiency.

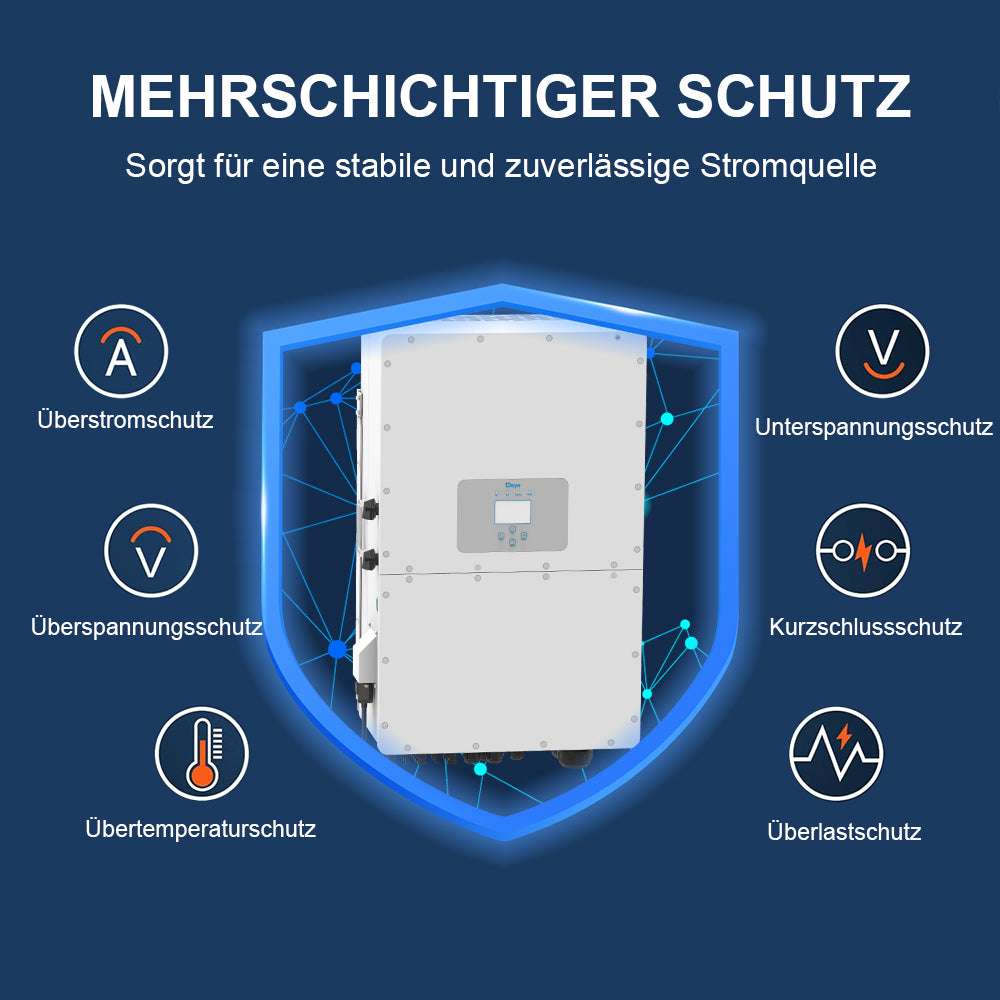

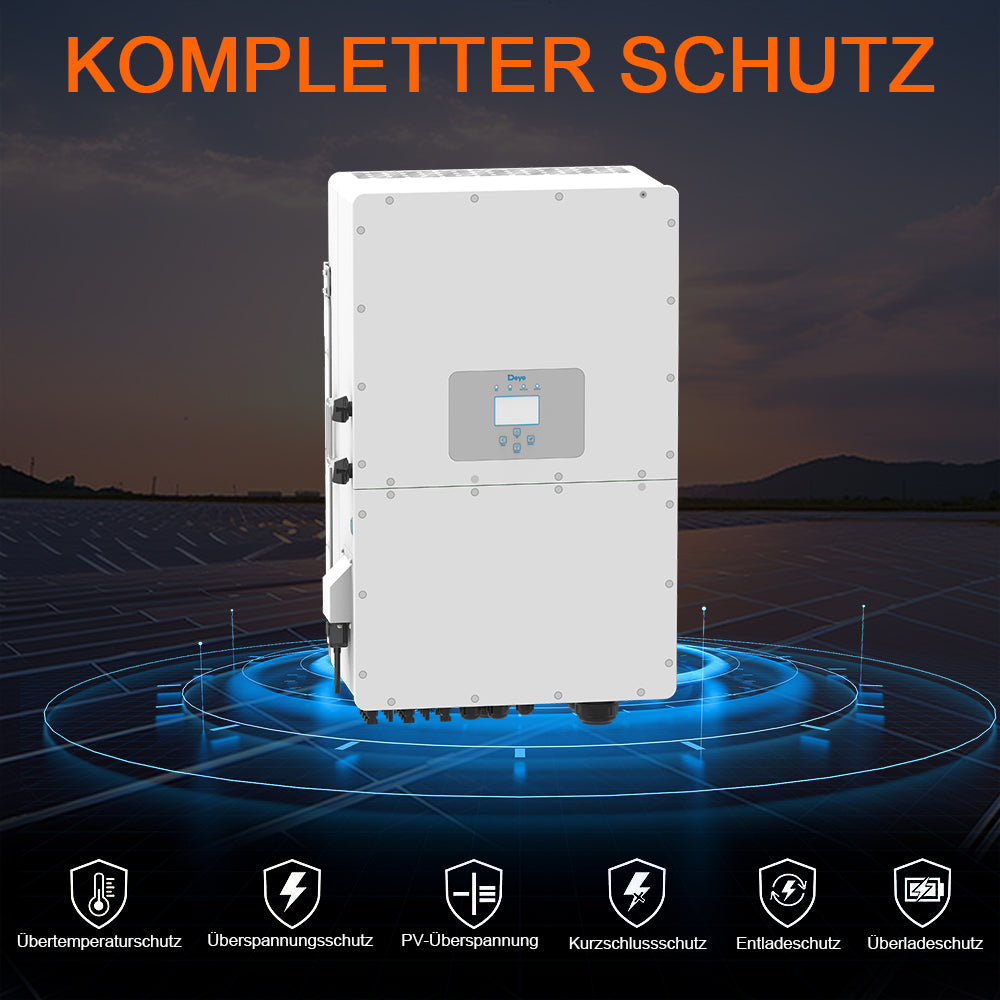

- 🌞【Multiple Protection Features】Our off-grid hybrid solar inverter is equipped with a series of safety features, including over-temperature protection, over-current protection, over-voltage protection, under-voltage protection, short-circuit protection and overload protection. These safeguards ensure the safety of your circuits and your energy supply.
- 🌞【Intelligent Control】Our pure sine wave hybrid inverter provides real-time system data and operating status via an LCD display. It is a versatile power solution for home and office and is suitable for a wide range of electrical appliances.
- 🌞【Wide Application】The maximum rated power of this hybrid inverter is up to 30KW, which can provide power for various electrical devices in home or office environments, including electrical appliances such as lamps, fans, refrigerators, air conditioners, coffee machines, etc.
- 🌞 【WIDE RANGE OF APPLICATIONS】MPPT inverter charger 30KW for RV Camping Boat Home Emergency ect. Can be accessed a variety of household and office loads, including oven, rice cooker, lamps, TVs, fans and other AC loads.

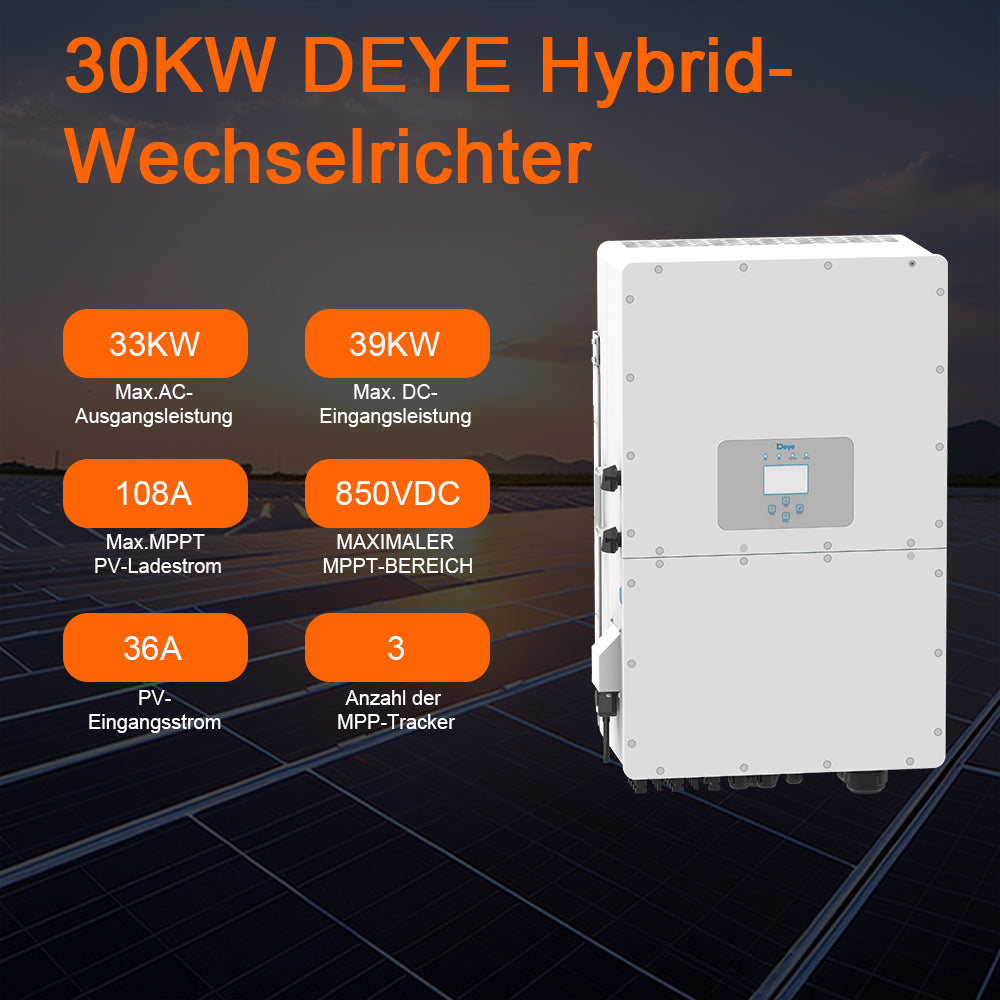

| Input data of the PV string | DEYE SUN 30K-SG01 HP3-EU-AM2 |
| Max. DC input power (W) | 39000 |
| Nominal PV input voltage (V) | 1000 |
| Starting voltage (V) | 180 |
| MPP voltage range (V) | 150-850 |
| Full load DC voltage range (V) | 360-850 |
| Nominal DC input voltage (V) | 600 |
| PV input current (A) | 36+36+36 |
| Max. PV short circuit current (A) | 55+55+55 |
| AC output data | |
| AC rated power and UPS power (W) | 30000 |
| Max. AC output power (W) | 33000 |
| AC Output Current Rating (A) | 45.5/43.5 |
| Max. AC output current (A) | 50/47.8 |
| Max. three-phase unbalanced output current (A) | 60 |
| Max. Continuous AC Current (A) | 200 |
| Max. efficiency | 97.60% |
| MPPT efficiency | 99.90% |

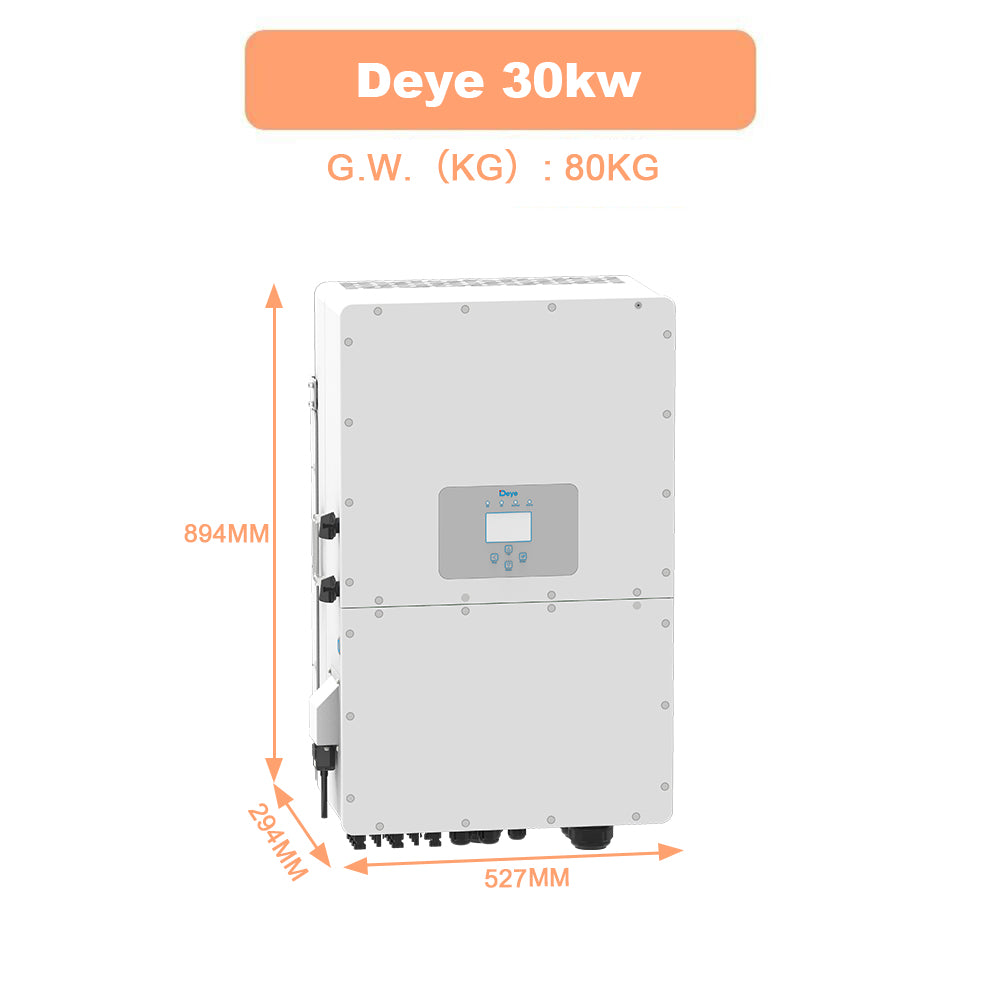

| Size (mm) | 527W×894H×294D（Without connectors and brackets） |
| Weight (kg) | 80 |
